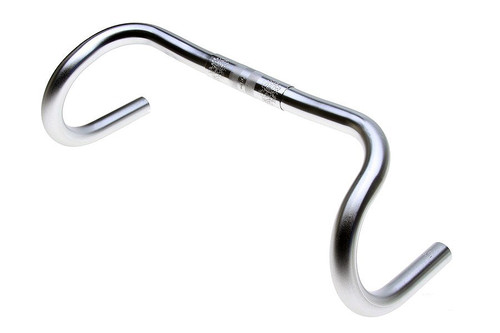

Nitto B136AA Road Drop Handlebars | 26.0mm Clamp | Silver

Product Description

Nitto B136AA Road Drop Handlebars | 26.0mm Clamp | Silver

History

Nitto was founded in 1923 in Tokyo, Japan and is a Japanese manufacturer of bicycle components such as handlebars, stems, and seat posts. For some time now, Nitto has also been manufacturing other bicycle components such as bicycle racks. Various Nitto components are certified for track cycling races, and the company was one of the first to outfit the Japanese Keirin races.

Description

The Nitto B136AA 'bee' bar is a similar shape and style as the 132 and 135 Grand Randonneur handlebars. The biggest difference is the more drop and less reach.

Shallow, easily accessible drops that flare out at the ends. These features combined with the upward-bent flats offer many different hand positions to keep you comfortable on those long rides and rougher surfaces.

This is a first-class and lovely handlebar which would suit any Randonneur / Audax machine, off-road Rando rig or touring bike and its Bar-End compatible.

Be aware the ramps are relatively long, so you may want to use a shorter stem.

Requires brake levers with 23.8mm clamp diameter.

Features

B136 bars have a 25.4mm or 26.0mm stem clamp diameter. (25.4 only comes 440m, 26.0mm comes 420mm or 440mm).

128mm drop.

100mm reach.

Flare angle is 80 deg with 6 deg upsweep and 1deg backsweep.

Drop measurements - Centre To Centre.

420mm and 440mm.

Hood measurements - Centre To Centre.

420mm = 380mm.

440mm = 400mm.
